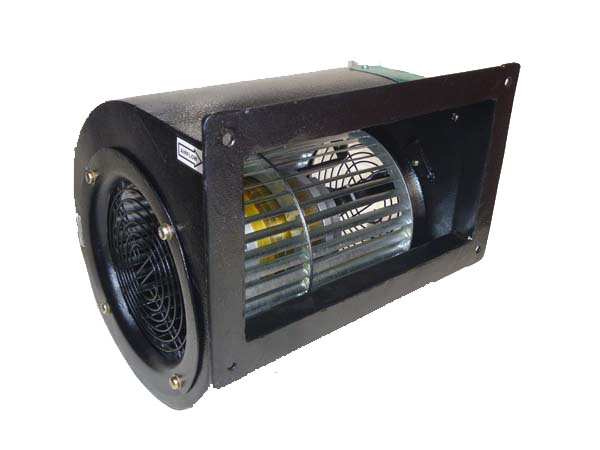

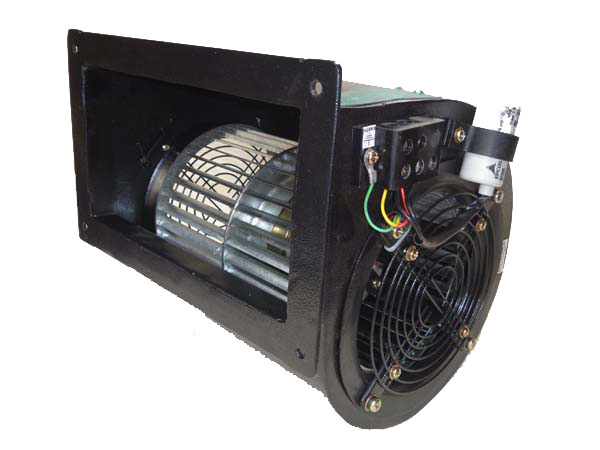

Double Inlet Forward Curved Impeller
140 Series
Technical Specification
| TYPE | I/P SUPPLY | AMPS (A) |
WATTS (W) |
RPM | OUTPUT | Static-Pr (mm-wc) |
dBA | Cap. µf |
Admissible Ambient Temp : |
Weight Kg |
|
| (CMH) | (CFM) | ||||||||||
| SDB 140 S2 | 230V, 1Ø, 50Hz | 1.25 | 300 | 2450 | 900 | 529 | 47 | 72 | 6 | 65 | 5.3 |
| SDB 140 S4 | 230V, 1Ø, 50Hz | 0.5 | 110 | 1400 | 620 | 365 | 25 | 65 | 4 | 65 | 5.3 |

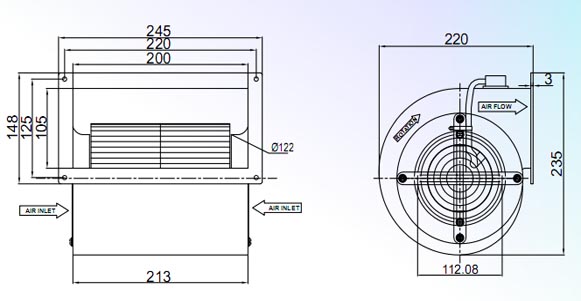

Product Drawing

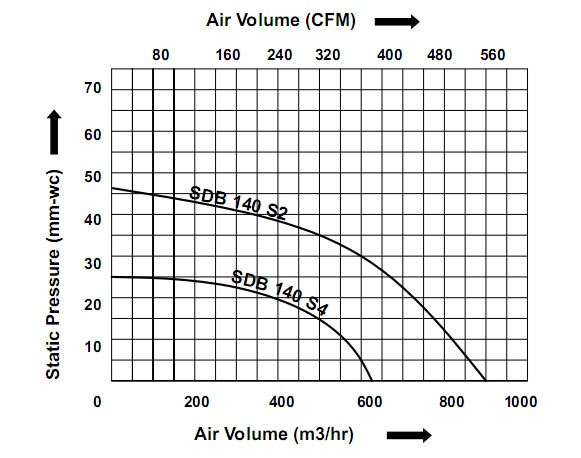

Performance Chart
