Blowers & Centrifugal Fans

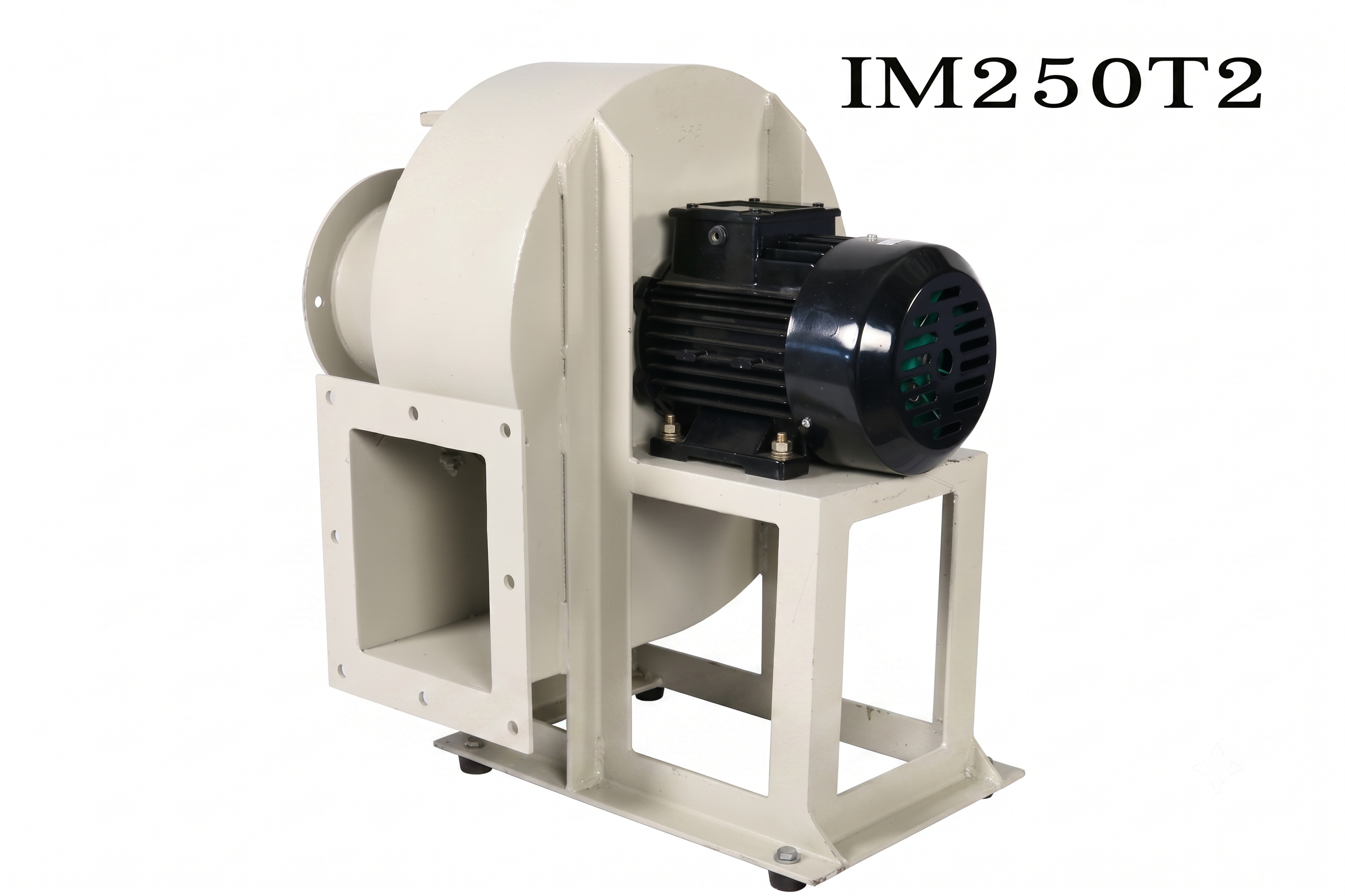

Single Inlet Forward Curved Imp. with External Motor
Single inlet forward curved blowers with external induction motor for high-temperature and heavy-duty industrial applications.
Catalogue Specifications
Models and Technical Data
Catalogue values are shown in their published units. Final selection and operating-point suitability should be confirmed with SEM engineering.
| type | supply | amps | watts | rpm | airflow cmh | airflow cfm | static pr | dba | amb temp | weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 130 IM 3BT | 415V, 3Ø, 50Hz | 0.65 | 200 | 2880 | 420 | - | 68 | 80 | 80°C | 5.4 |
| 150 IM 3BT | 415V, 3Ø, 50Hz | 0.7 | 250 | 2880 | 500 | - | 40 | 72 | 80°C | 5.6 |
| 160 IM 3BT | 415V, 3Ø, 50Hz | 0.75 | 275 | 2800 | 650 | - | 55 | 74 | 80°C | 6 |
| 170 IM 3BT | 415V, 3Ø, 50Hz | 0.76 | 300 | 2800 | 800 | - | 58 | 76 | 80°C | 6.75 |
Tolerance ±5% on Specified values
Need help selecting a model?
Share your airflow, static pressure, supply and application requirements.
