Motors

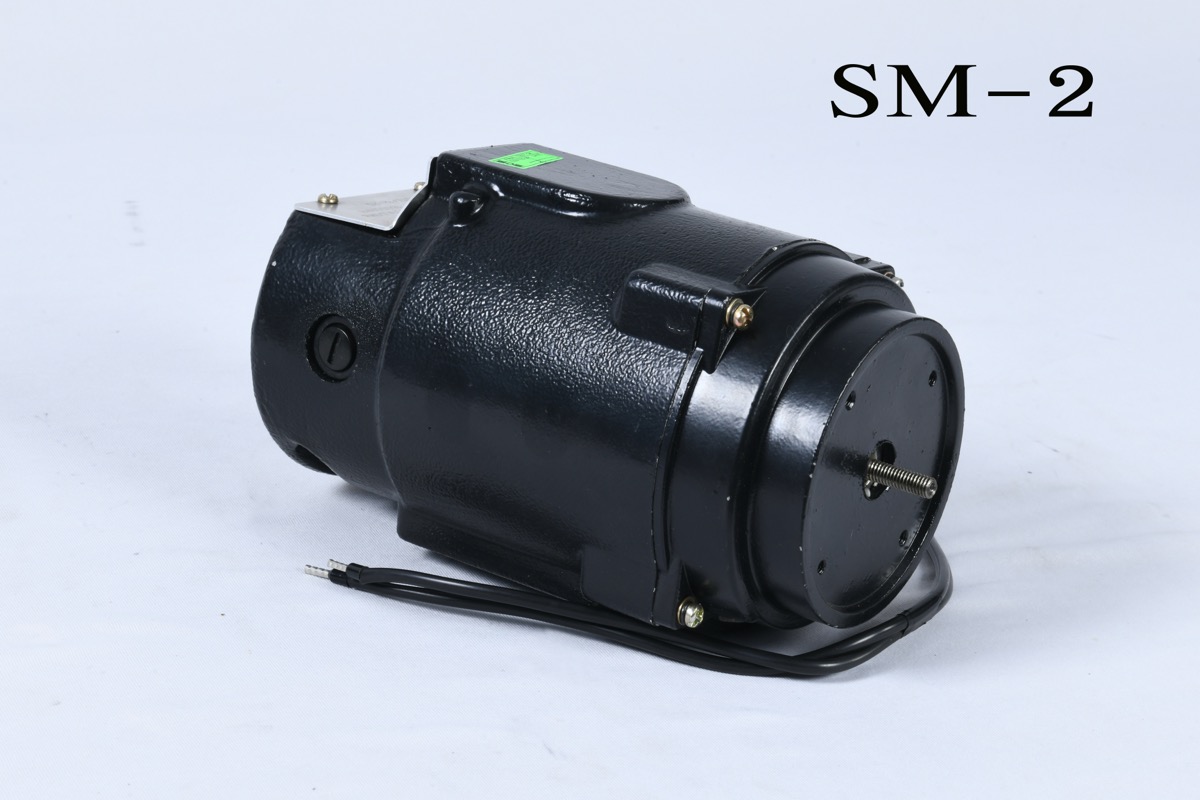

Pump Motors
High-speed pump motors for industrial pumping applications. Compact and robust design with carbon brush holder.
Catalogue Specifications
Models and Technical Data
Catalogue values are shown in their published units. Final selection and operating-point suitability should be confirmed with SEM engineering.
| Type | I/P Supply | Amps max (A) | Watts max (W) | RPM | dBA | Amb. Temp °C | Weight Kg |
|---|---|---|---|---|---|---|---|
| S.M-1 | 230V, 1Ø, 50Hz | 0.9 | 250 | 14000 | 88 | 60 | 3.6 |
| S.M-2 | 230V, 1Ø, 50Hz | 1.5 | 350 | 16000 | 88 | 60 | 4.2 |
Tolerance ±5% on Specified values
