Blowers & Centrifugal Fans

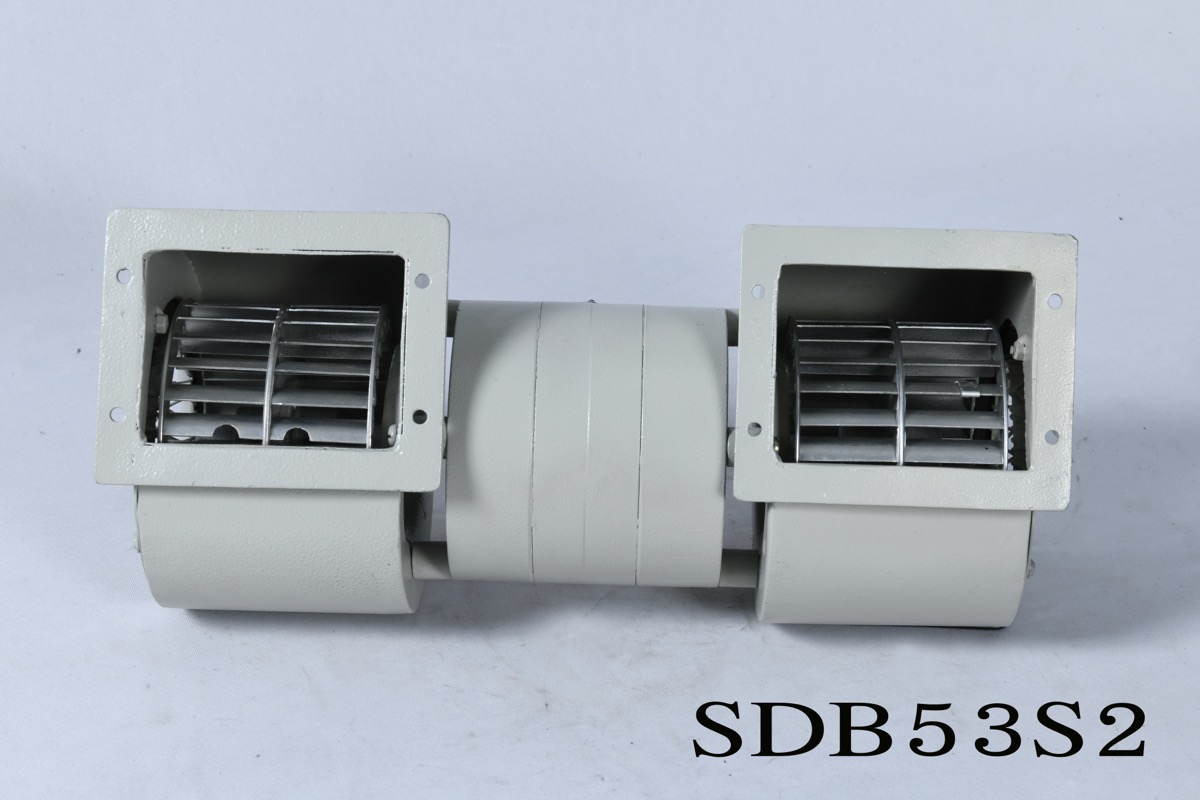

Conventional Single Inlet Double Blower
Single inlet double blower delivering high airflow for large-scale ventilation and air conditioning applications.
Catalogue Specifications
Models and Technical Data
Catalogue values are shown in their published units. Final selection and operating-point suitability should be confirmed with SEM engineering.
| Type | I/P Supply | Amps (A) | Watts (W) | RPM | Airflow CMH | Airflow CFM | Static PR (mm-wc) | dBA | CAP µf | Amb. Temp °C | Weight Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SDB 63 S2 | 230V, 1Ø, 50Hz | 1 | 240 | 2700 | 1300 | 765 | 40 | 73 | 6 | 60 | 6 |
Tolerance ±5% on Specified values
