Axial Fans

Axial Fan External Rotor Press Fit Impeller

Name: Axial Fan External Rotor Press Fit Impeller
Brand: SEM

External rotor press fit impeller axial fans offering silent, compact and efficient air movement for HVAC, refrigeration and motor cooling.

RefrigerationAir ConditioningMotor CoolingHVACCondenser Cooling

Catalogue Specifications

Models and Technical Data

Catalogue values are shown in their published units. Final selection and operating-point suitability should be confirmed with SEM engineering.

Type	I/P Supply	Amps (A)	Watts (W)	RPM	Airflow CMH	Airflow CFM	Static PR (mm-wc)	dBA	CAP µf	Fan Dia D(mm)	Height H(mm)	Amb. Temp °C	Weight Kg
CM 130 S2/B2	230V, 1Ø, 50Hz	0.15	25	2850	300	176	16	50	1	128	65	60	1.05
CM 150 S2/B2	230V, 1Ø, 50Hz	0.15	30	2850	350	206	20	52	1.5	148	65	60	1.05
CM 200 S4/B4	230V, 1Ø, 50Hz	0.25	45	1400	425	250	8	50	1.5	197	78	60	2
CM 200 S2/B2	230V, 1Ø, 50Hz	0.3	60	2750	900	529	26	65	2	197	78	60	2.25
6AF 3S2/B2	415V, 3Ø, 50Hz	0.17	40	2880	350	206	18	60	—	148	78	60	1.9
8AF 3B4/S4	415V, 3Ø, 50Hz	0.35	50	1400	425	250	8	50	—	197	78	60	2
8AF 3B2/S2	415V, 3Ø, 50Hz	0.2	90	2800	900	529	26	65	—	197	78	60	2
CM 250 S4/B4	230V, 1Ø, 50Hz	0.25	65	1400	850	500	10	50	2.5	248	87	60	2.25
CM 250 S2/B2	230V, 1Ø, 50Hz	0.6	140	2600	1700	1000	35	72	3.15	248	87	60	2.25

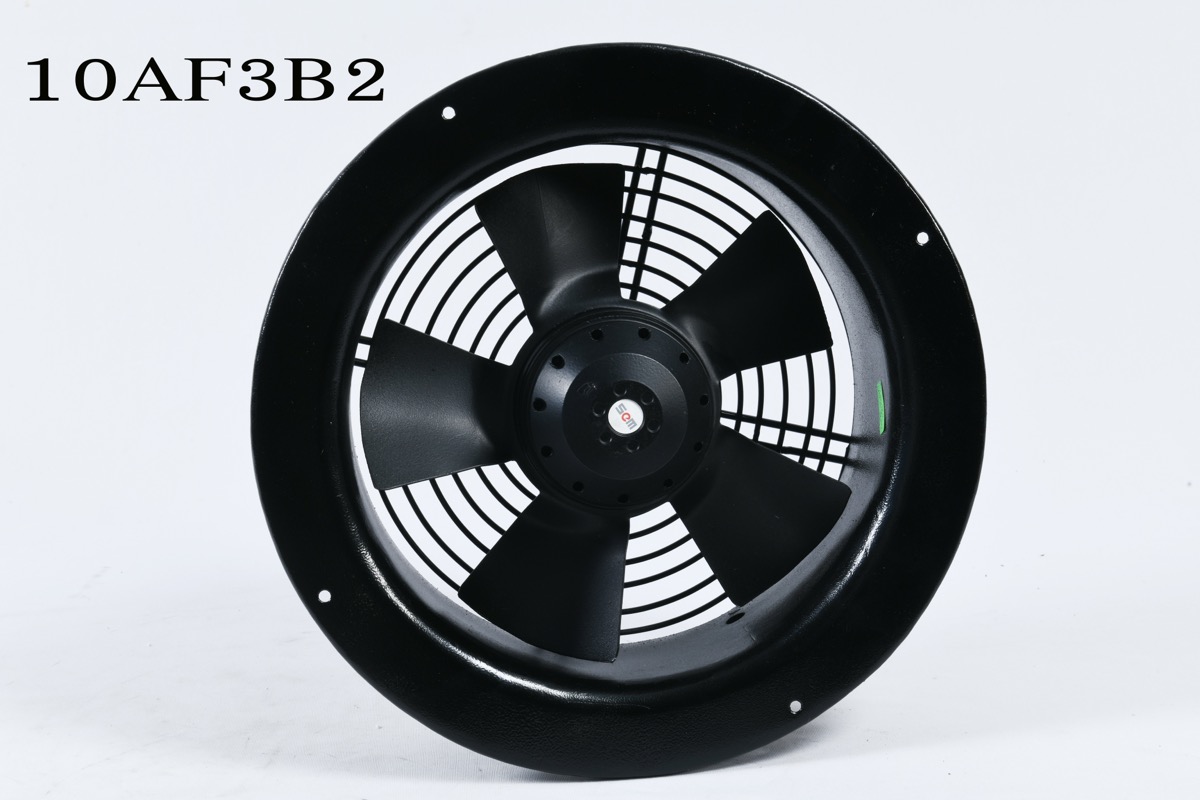

10AF 3B2/S2	415V, 3Ø, 50Hz	0.25	130	2650	1700	1000	35	72	—	248	87	60	2.25
10AF 3B4/S4	415V, 3Ø, 50Hz	0.25	80	1475	1000	588	9	50	—	248	87	60	2
CM 300 B4/S4	230V, 1Ø, 50Hz	0.3	75	1400	1750	1029	12	64	3.15	298	88	60	2.5
12AF 3B4/S4	415V, 3Ø, 50Hz	0.3	75	1350	1750	1029	12	64	—	298	88	60	2.5
CM 300 B2/S2	230V, 1Ø, 50Hz	0.7	165	2450	2300	1353	20	65	4	298	88	60	2.5
12AF 3B2/S2	415V, 3Ø, 50Hz	0.3	150	2450	2300	1353	20	73	—	298	88	60	2.5

S = Suction type, B = Blowing type. Tolerance ±5% on Specified values.

Share your airflow, static pressure, supply and application requirements.
