Axial Fans

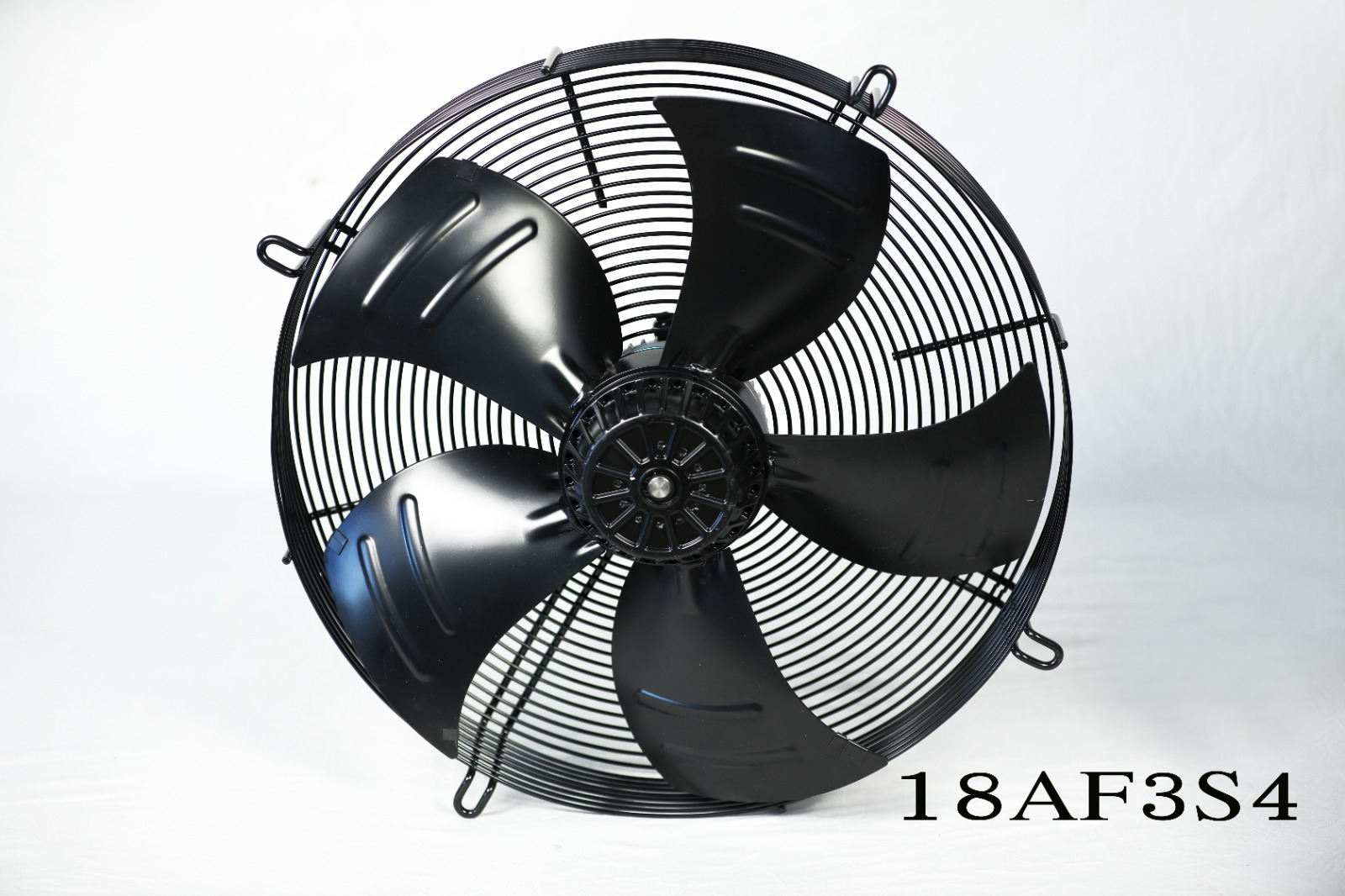

18 Inch Axial Fan
18 inch external rotor axial fan with basket grill, mild steel powder coated blade, and IP-54 ingress protection for industrial cooling and ventilation applications.
Catalogue Specifications
Models and Technical Data
Catalogue values are shown in their published units. Final selection and operating-point suitability should be confirmed with SEM engineering.
| Type | I/P Supply | Amps (A) | Watts (W) | RPM | Airflow CMH | Airflow CFM | Admissible Ambient Temp °C | Weight Kg |
|---|---|---|---|---|---|---|---|---|
| 18AF 3B4-BG | 415V, 3Ø, 50Hz | 0.6 | 280 | 1350 | 5800 | 3412 | 60 | 5.7 |
All dimensions are in mm. Fan blade is made of mild steel and powder coated. Ingress protection IP-54.
Need help selecting a model?
Share your airflow, static pressure, supply and application requirements.
